Handle Operated Ball Valve
Handle Operated Ball Valve
Model : SV-BLV-MNL
“Stanvalves” Offers Handle Operated Investment Casting WCB/CF8/CF8M/ Ball Valve In Three Piece /Two Piece Design, Engineered For Multiple On/Off Operations in The Down Steam.
Enquire Now
Enquire Now
Thank you for your enquiry
Oops! Something went wrong while submitting the form.
Technical Specification
Size Range : 1/2" to 4" Screwed / Flanged / Triclover / Socket weld
Valve
| Body | ASTM A216 Gr . WCB / ASTM A351 Gr . CF8 / CF8M |
| Ball | ASTM A351 Gr . CF8 / CF8M |
| Stem | Stainless Steel AISI 304 / AISI 316 / AISI 410 |
| Gland | Stainless Steel AISI 304 / AISI 316 / M.S. |
| Seat Packing | "PTFE ( Gland Filled, Carbon Filled, Teflon - Optional in case of high Temperature )" |
| End Connection | "Screwed to - BSP / NPT / Socket Weld Ends to ANSI ) B 16.11 |
| Flanged to - ANSI B 16.5 Class 150/300 | |
| Table - D, E, F, ( On Request ) | |
| Triclover Ends - ( On Request ) | |
| Socket Weld - ( On Request ) |
| Item | Type of Test | Testing Pressure | Working Pressure | Operating Temperature ( high Temp . On Request ) |
| Valve Body Screwed End | Hydraulic | 450 PSIG | 315 PSIG | Max . 180 ° C |
| Valve Body Flanged 150 # | Hydraulic | 450 PSIG | 315 PSIG | Max . 180 ° C |
| Valve Body Flanged 300 # | Hydraulic | 112 PSIG | 815 PSIG | Max . 180 ° C |
All Dimensions are in mm
Dimensions

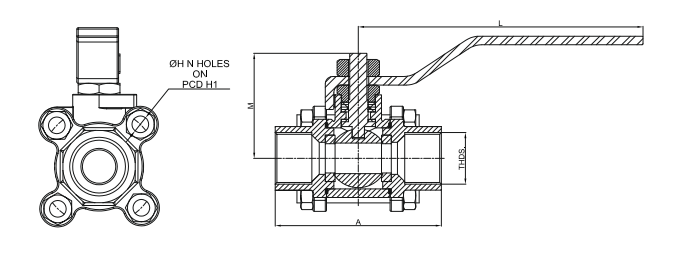

| SIZE (MM) | SIZE (IN .) | A | THDS . BSP | ØH | H1 | N | L | M | Approx Weight |
| 15 | 1/2 " | 68 | 1/2 " | 8 | 42.5 | 4 | 122.5 | 53.5 | 0.400 |
| 20 | 3/4 " | 72 | 3/4 " | 8.5 | 53 | 4 | 152.5 | 60.5 | 0.600 |
| 25 | 1 " | 84 | 7 " | 9 | 59 | 4 | 131.5 | 67.5 | 0.800 |
| 40 | 1.1 / 2 " | 119 | 1.1 / 2 " | 11 | 87.5 | 4 | 201 | 92.5 | 2.100 |
| 50 | 2 " | 130 | 2 " | 10 | 103 | 4 | 228.5 | 107 | 3.100 |

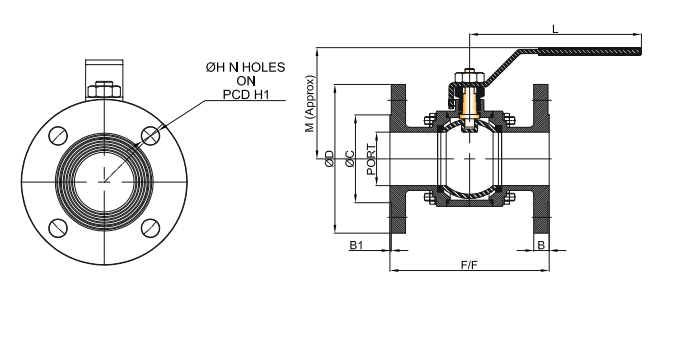

| SIZE (MM) | SIZE (IN .) | B | B1 | с | D | PORT | H | H1 | N | F / F | L | M | Approx Weight |
| 15 | 1/2 " | 10.5 | 1.5 | 35 | 89 | 12.5 | 15.5 | 60 | 4 | 108 | 125 | 80 | 1.800 |
| 20 | 3/4 " | 10.5 | 1.5 | 43 | 98.5 | 18 | 16 | 70 | 4 | 117 | 150 | 90 | 2.200 |
| 25 | 1 " | 12 | 1.5 | 51 | 108 | 25 | 16 | 79.5 | 4 | 127 | 150 | 75 | 3.500 |
| 40 | 1.1 / 2 " | 14 | 1.5 | 73 | 127 | 37 | 16 | 98.5 | 4 | 165 | 205 | 100 | 4.350 |
| 50 | 2 " | 16 | 1.5 | 92 | 152 | 50 | 19 | 120 | 4 | 178 | 205 | 110 | 6.450 |
| 65 | 2.1 / 2 " | 17.5 | 1.5 | 105 | 178 | 64 | 19 | 140 | 4 | 190.5 | 205 | 120 | 12.300 |
| 80 | 3 " | 21 | 1.5 | 127 | 190.5 | 75 | 19 | 152 | 4 | 203 | 325 | 135 | 17.500 |
| 100 | 4 " | 23.5 | 1.5 | 157 | 228.5 | 98 | 19 | 190 | 8 | 228 | 325 | 160 | 28.600 |
