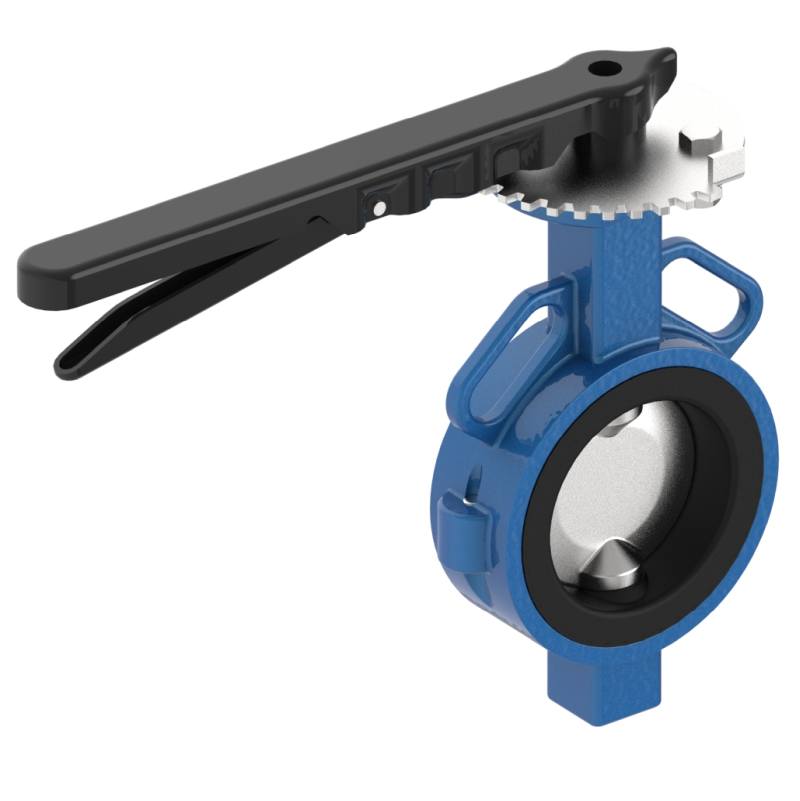

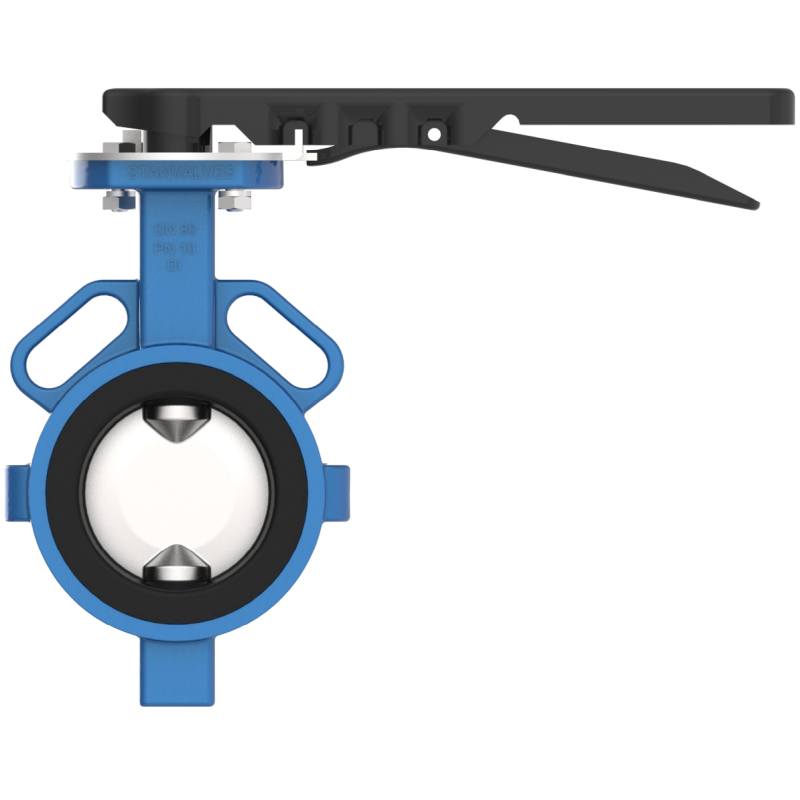

Handle Operated Butterfly Valve

Handle Operated Butterfly Valve

Model : SV-BYV-MNL

“Stanvalves” offers rubber lined Butterfly Valves for HVAC & utilities. These Valves are truly "Fit & Forget Valve,Which requires minimum maintenance. The body lines which also functions as the soft seat, comes in anintegrally moulded version & offers bi-directional sealing against vacuum upto the pressure of PN 10/PN 16

Enquire Now
Technical Specification
Dimensions
Operating Range

Technical Specification

Size Range : 1.1/2" to 40"

Valve

Body I.C. / CI ( IS 210 Gr . FG 200/220 ) WCB / S.S . 304 / S.S. 316
Disc CF8 / CF8M / CF3M / S.G . Iron / Teflon Coated / Powder Coated" Nylon Coated Rubber Line
Seat EPDM / Nitrile / Hayplon / Viton / Moulded or Replaceable muffler type
Shaft AISI 410 / CF8 / CF8M / CF3M
Valve Type Centric Disc Butterfly Valve with a single piece rubber lined body
Body Type Short wafer ( sandwiched between flanges )
Seat Type Integrally moulded with the body
End Connection Wafer Sandwiched ( Lug Type On Request )
Pressure rating PN 10 / PN 16 ( On Request )
Oper . Temp . range -25 ° C to 130 ° C ( depending on MOC )
Seat Leakage Tight shut off
Operation "Hand lever for sizes from 40 mm to 350 mm
Item Type of Test Testing Pressure Operating Temperature ( Normal ) Operating Temperature ( High )
Valve Body Hydraulic 225 PSIG Max . 80 ° C High Temp . On request
Seat Hydraulic 150 PSIG Max . 80 ° C High Temp . On request

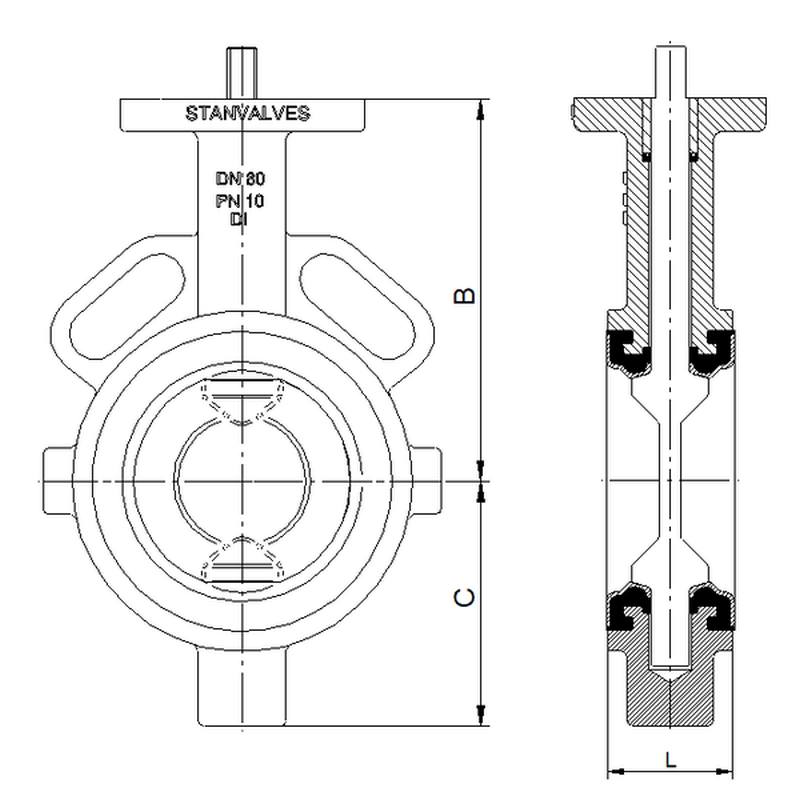

Dimensions

Size DN Size NPS L C B Wt .
50 2 43 70 120 3.5
65 2 1/2 46 80 135 3.5
80 3 46 90 140 3.8
100 4 52 110 160 5.5
125 5 56 120 180 8.0
150 6 56 150 205 9.5
200 8 60 180 235 21.0
250 10 68 210 260 24.5
300 12 78 230 300 35.5

All Dimensions are in Kg
